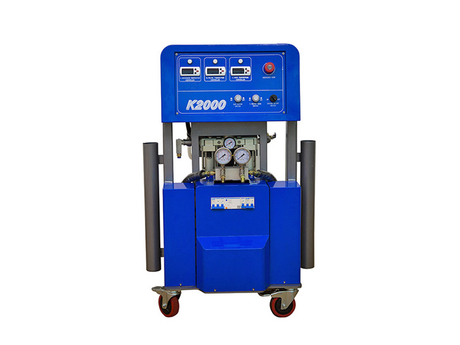

K2000 Pneumatic polyurea spraying machine is a basic, inexpensive and portable polyurethane spray and injection machine, suitable for two-component polyurethane spray technology. It is small in size, easy to operate and maintain, and is especially suitable for small area projects.
DETAILED PARTS
 |  |  |
 |  |  |
| Technical Parameters | |
| Model | K2000 Pneumatic polyurea spraying machine |
| Applicable materials | Polyurethane |
| The ratio of raw material | 1:1 |
| Viscosity range of raw materials | 200-1000CPS (under working temperature) |
| Max working pressure | 15MPa |
| Max fluid temperature | 80°C |
| Max output | lOkg/min |
| Max heated hose length (Optional) | 45m |
| Heater power | 3000Wx2 |
| Heated hose max power | 2000W |
| Drive mode | Full pneumatic |
| Clean mode | Self-cleaning by air |
| Voltage (Optional) | Single phase 220V 50Hz or Three phase 380V 50Hz |
| Whole power | 9kw |
| Pneumatic source | 0.5-0.8Mpa lm3/min |
APPLICATION INDUSTRY
MAINFRAME
TRANSFER PUMP
HEATED HOSE
SPRAY GUN
STANDARD CONFIGURATION
| Standard Configuration | |||
| Reanin-K2000 mainframe | 1 set | Heated hose | 15m |
| Reanin spray gun | 1 set | Transfer pump hose | 2 pcs |
| Transfer pump | 2 sets | Whip hose | 2 pcs |
| Air pipe | 1 set | Tools and spare parts | 1 set |
| English user manual | 1 set | Protective clothing and mask | 1 set |
MACHINE SIZE
SHIPPING PACKAGE
WORKSHOP
COMPANY INTRODUCTION
CERTIFICATE
FAQ
CONTACT US
